Vertical LAF Cabinet - C Series
Metisafe Vertical LAF cabinets works under air filtration, re-circulation and indoor exhausting principle. Room air pass through pre-filters that blocks coarse particles at device top and reaches to work cabinet area with air velocity of 0.40 m/s (±5%) by passing through HEPA filter. Built in laminator in fan filter module supplies the airflow at homogenous and laminated way. Designs of working cabinet and air diffusion assures trimmed airflow and sweeping dead zones. Air moves in two way in working cabinet, one part exhausted to room at front by reventing room air move into the working zone. The rest of the internal air isrecirculated from the back holes of the cabinet by increasing HEPA filter life.
Main Body and Design Features
- Main body from antibacterial electrostatic paint coated on steel
- <7° angle back sloped front panel for work comfort and increased working chamber vision
- Easy reachable electronic control & electrical part protection inside at front panel isolated from working chamber
- UV resistant glass front window and side windows
Electronic Control Unit
- Power, Fan, UV and FL lamp On/Off buttons
- Digital screen with real-time air velocity data
- Standby and Normal work modes
- Advanced filter compensation system keeping fixed airflow rate under increased filter resistance
- Audial alarm activation with unproper air velocity rates
Quality And Certifications
- CE
- ISO9001-2015 Quality Management Certificate
- ISO14644 Cleanroom Class Compatibility
- EN61010 Electric and Electronic Safety Compatibility
- Accredited Testing Institution Validation Guarantee
Optionals
- MOP.HTS Humidity/Temperature Sensor
- MOP.CFL.EU4 Active Carbon Impregnated Pre-filter
- MOP.PMS Particle Measure System
- MOP.BWT Precision Balance with Vibration Damping Weighing Table
- MOP.MDS Manuel Decontamination System
875x595x613
982x764x1196
982x764x742
775 mm
0.45 m/s ± %20
H14 HEPA, 0,3 μm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
750-1200 Lux
1180x595x613
1287x764x1196
1287x764x742
775 mm
0.45 m/s ± %20
H14 HEPA, 0,3 μm paticle %99.995 < filtration efficiency
EU4
304 Stainless Stee
316 Stainless Steel
≤ 60 dB
750-1200 Lux

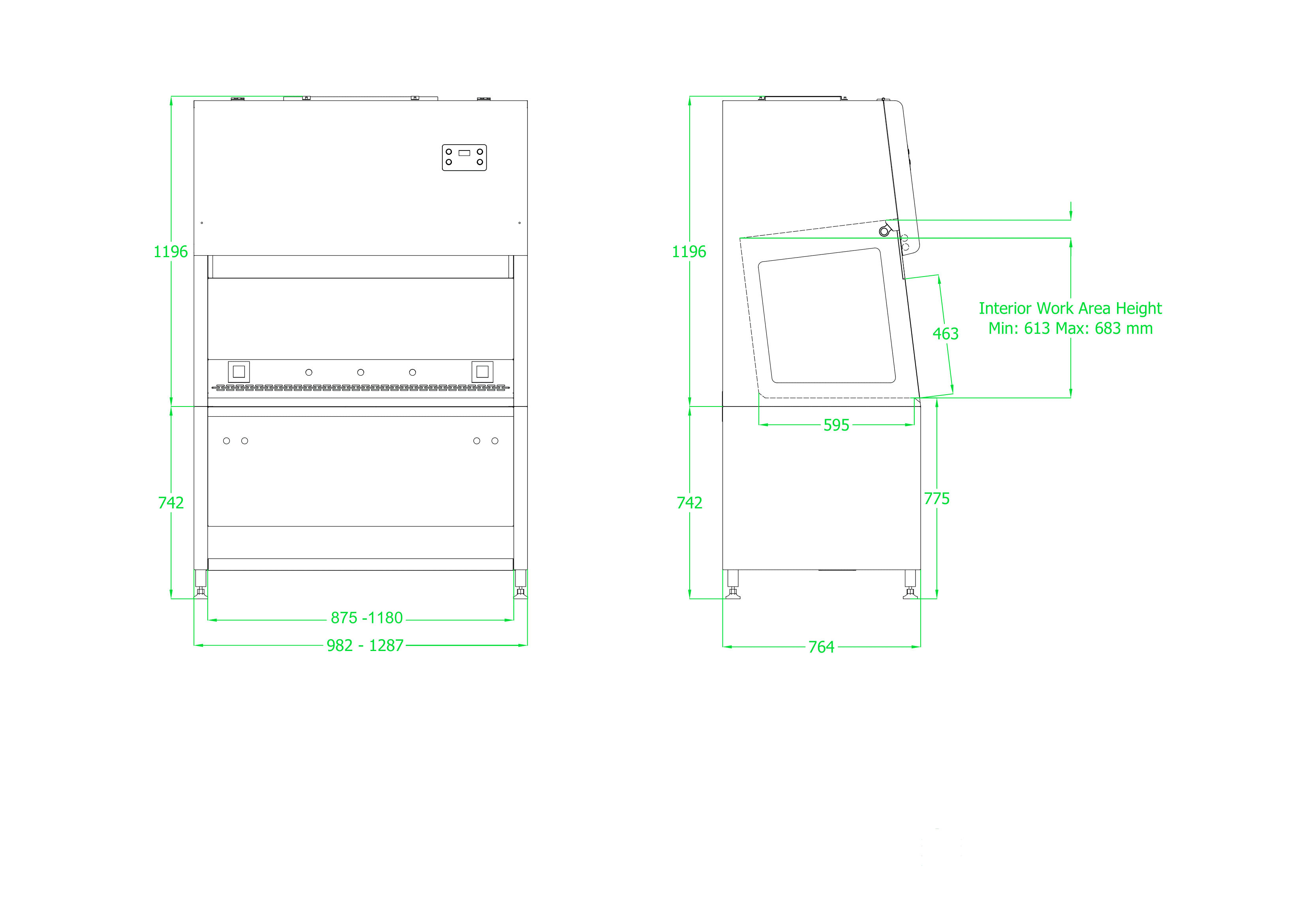

LFV-C Series Dimensions
