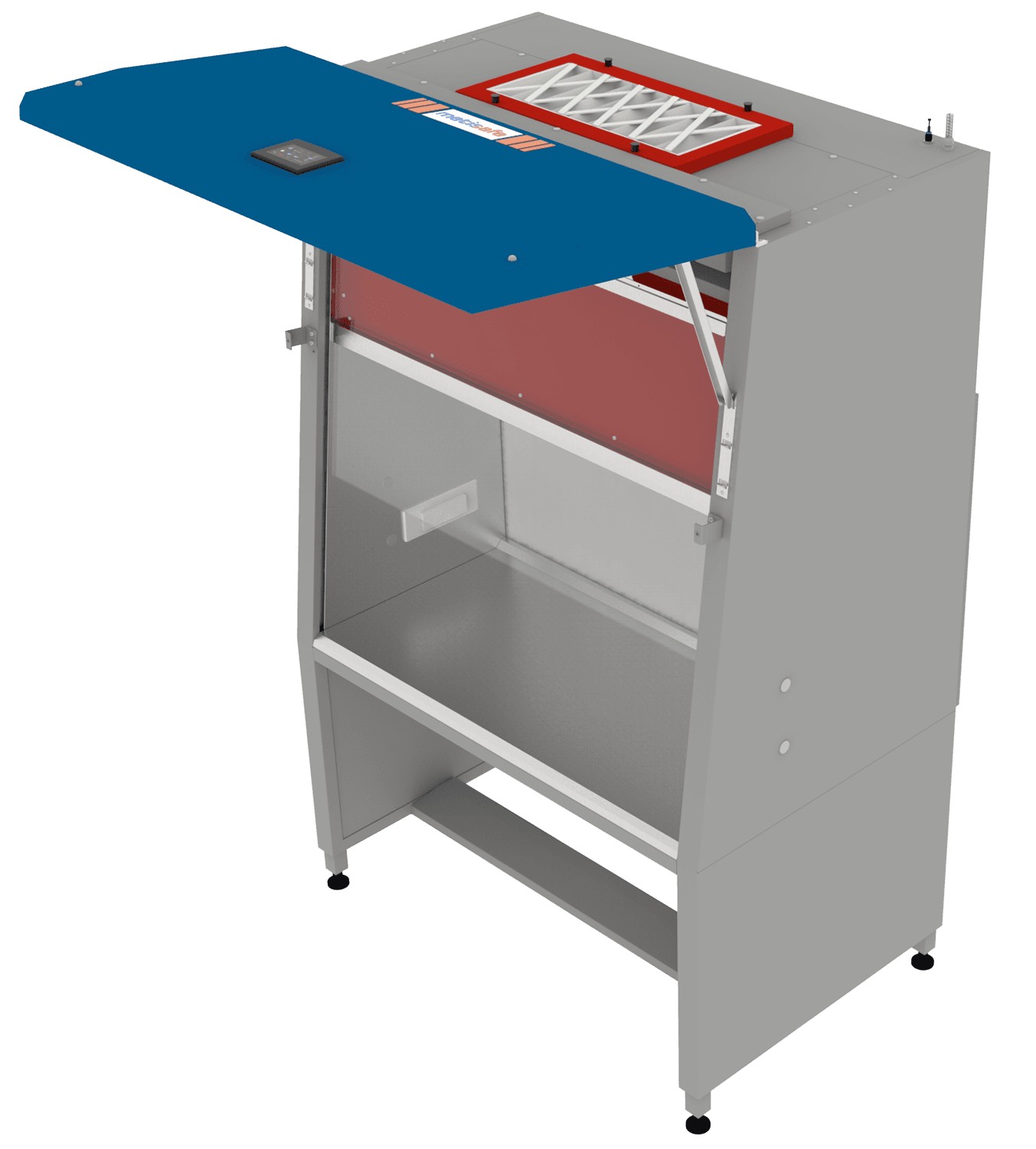

Horizontal LAF Cabinet
Metisafe® Horizontal LAF cabinets works under air filtration and indoor exhausting principle. Room air pass through pre-filters that blocks coarse particles at devize top and reaches to work cabinet area with air velocity of 0,40 m/s (±% 5) by passing through HEPA filter. Built in laminator in fan filter module supplies the airflow at homogenous and laminated way. Designs of working cabinet and air diffusion assures trimmed airflow and sweeping dead zones. Air moves in one way in working cabinet by exhausted to room at front by preventing room air move into the working zone. The automatic air compensation through microprocessor control system keeps steady airflow rate at set point.
Main Body and Design Features
- Main body from antibacterial electrostatic paint coated on steel
- <7° angle back sloped front panel for work comfort and increased working chamber vision

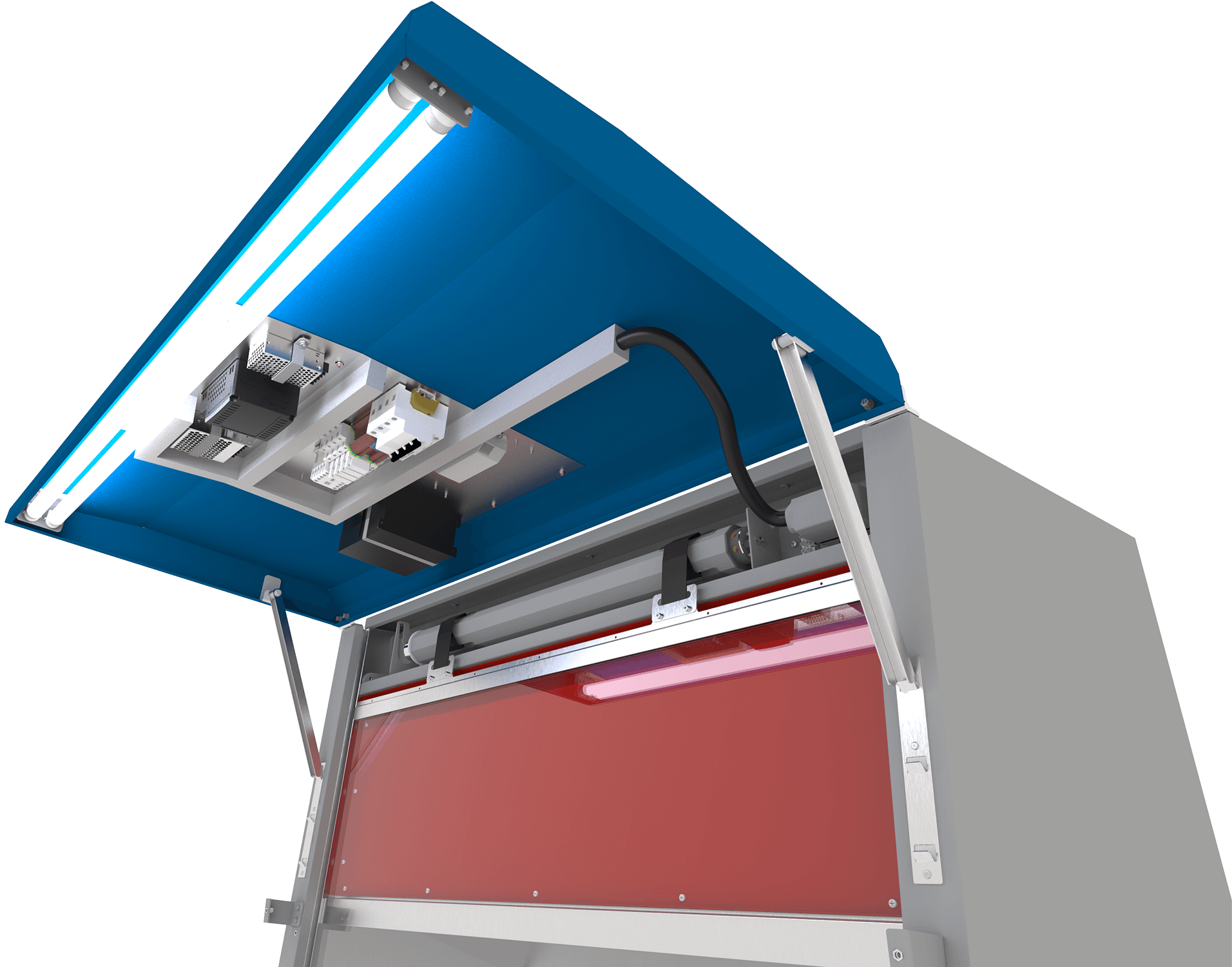

- Easy reachable electronic control & electrical part located inside at the front panel isolated from the work chamber
- UV resistant glass
Microprocessor Control Unit
- Password protected user control
- Power on/off
- Standby/Normal mode operation button
- Motorized front window level position setting and one key front window preset position
- UV and FL on-off button
- UV activation and automatic switch to standby mode only after fully closed front window
- User interface password change
- Password protected technical service maintanance / calibration
- Date and time information
Audio-Visual Warning System
- Unproper sash window position
- Unproper air velocity
- Filter and UV lamp replacement
- Technical service maintenance warnings
- Alarm silence button
Quality And Certifications
- CE
- ISO9001-2015 Quality Management Certificate
- ISO14644 Cleanroom Class Compatibility
- EN61010 Electric and Electronic Safety Compatibility
- Accredited Testing Institution Validation Guarantee
Optionals
- MOP.ADI Adjustable Illumunation
- MOP. FWS Front Window Motion Safety System
- MOP.HTS Humidity/Temperature Sensor
- MOP.RES Remote Access
- MOP.CFL.EU4 Active Carbon Impregnated Pre-filter
- MOP.FLT.ULP ULPA Filter
- MOP.MIE Microscope Entegration
- MOP.PMS Particle Measure System
- MOP.BWT Precision Balance with Vibration Damping Weighing Table
- MOP.WCS Working Cabinet Suspension Apparatus (IV Bar)
- MOP.MDS Manuel Decontamination System
875x550x586
995x865x1345
995x825x720
750 mm
0.45 m/sn ± % 5
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux
1180x550x586
1300x865x1345
1300x825x720
750 mm
0.45 m/sn ± % 5
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux
1490x550x586
1610x865x1345
1610x825x720
750 mm
0.45 m/sn ± % 5
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux
1790x550x586
1910x865x1345
1910x825x720
750 mm
0.45 m/sn ± % 5
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux

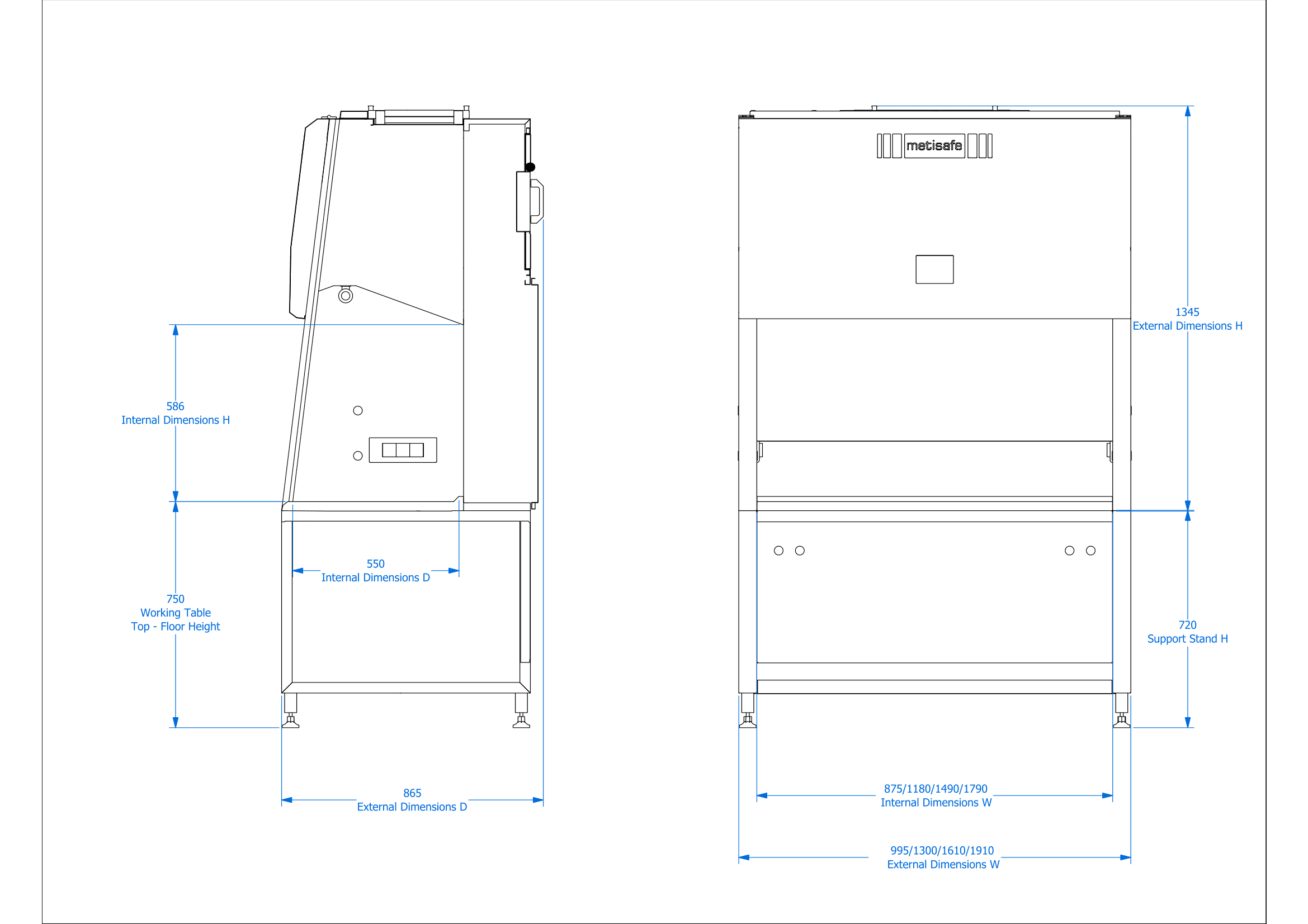

LFH Dimensions
