Vertical LAF Cabinet - S Series
S-Series Metisafe® vertical airflow LAF cabinets are upper-class primary barriers that are developed through meeting GMP (Good Manufacturing Practices) and GLP (Good Laboratory Practices) requirements by using conforming structural composition, components, and hardware. Metisafe S-series LAF cabinets are especially ideal for the pharmaceutical industry’s needs. Surface coating specifications, sophisticated decontamination, and advanced microprocessor control unit options provide suitable work conditions for highly-sensitive clean applications. Today the performance of widely utilized micro and nanotechnology applications have been increasing with superior product/material protection, and advanced clean-bench performance of S-Series Metisafe® LAF cabinets.
Main Body and Design Features
- Main body from static powder coated on 304 stainless steel
- <7° angle back sloped front panel for work comfort and increased working chamber vision
- 36°C Openable front panel for easy working chamber cleaning
- Easy reachable electronic control&electrical part located inside at the front door isolated from the work chamber
- UV resistant glass
Microprocessor Control Unit
- Password protected user interface
- Device on/off button
- Standby/Normal modes operation indicator
- Motorized front window level adjustment and one-button automatic front window level adjustment
- UV and Illumination Lamp On/Off Buttons
- Automatic switch to Standby mode and UV Lamp operation when the windshield is closed
- User interface password change
- Password protected technical service maintenance/calibration
- Lux Adjustable Illumination
- Date and time information
- Cabinet information page
- Downflow Air velocity rate
- Fan working capacity
- Fan working diagram
- UV lamp timer setting
- Cabinet, UV and illumination running times
Audio-Visual Warning System
- Audible visual alarm button and temporary mute
- Improper front window position warning
- Improper air velocity warning
- Filter and UV lamp replacement warning
- Technical service maintenance warning
Quality And Certifications
- CE
- ISO9001-2015 Quality Management Certificate
- ISO14644 Cleanroom Class Compatibility
- EN61010 Electric and Electronic Safety Compatibility
- Accredited Testing Institution Validation Guarantee
Optionals
- MOP. FWS Front Window Motion Safety System
- MOP.HTS Humidity/Temperature Sensor
- MOP.RES Remote Access
- MOP.CFL.EU4 Active Carbon Impregnated Pre-filter
- MOP.FLT.ULP ULPA Filter
- MOP.MIE Microscope Entegration
- MOP.PMS Particle Measure System
- MOP.BWT Precision Balance with Vibration Damping Weighing Table
- MOP.WCS Working Cabinet Suspension Apparatus (IV Bar)
- MOP.MDS Manuel Decontamination System
875x680x650
1020x840x1385
995x793x785
860 mm
0.45 m/s ± %20
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux
1180x680x650
1325x840x1385
1300x793x785
860 mm
0.45 m/s ± %20
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux
1485x680x650
1630x840x1385
1605x793x785
860 mm
0.45 m/s ± %20
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux
1790x680x650
1935x840x1385
1910x793x785
860 mm
0.45 m/s ± %20
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux

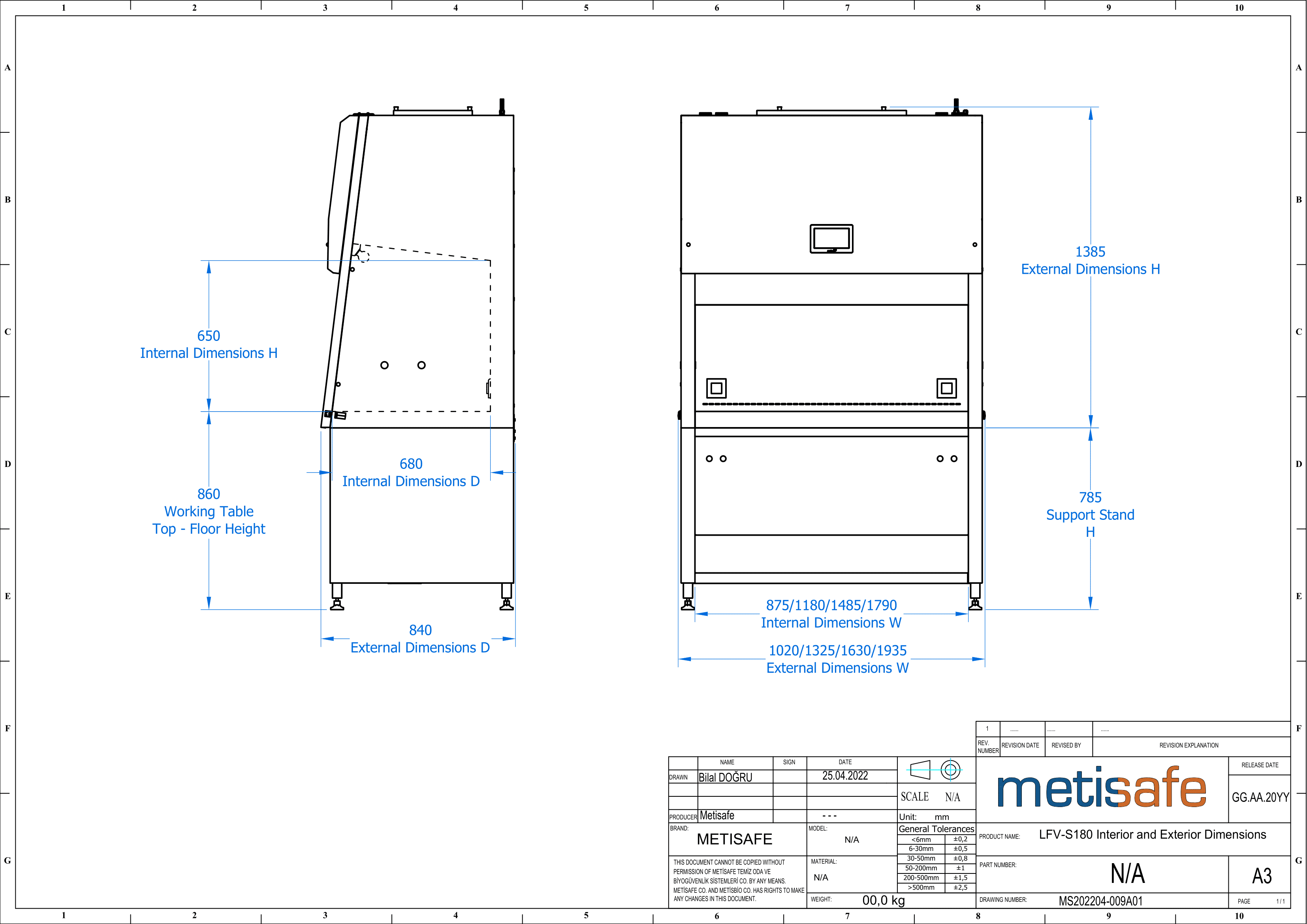

LFV-S Dimensions
