Vertical LAF Cabinet - E Series
Metisafe® Vertical LAF cabinets works under particle filtration, air recirculation and indoor exhausting principle. Room air pass through pre-filters that blocks coarse particles at device top and reaches to work cabinet area with air velocity of 0.40 m/s (± %5) by passing through HEPA filter. Built in laminator of fan filter module supplies the airflow homogenous way into the work chamber. Design of working chamber and air diffusion as sure trimmed airflow and sweeping the deadzones. Air movesp paths over the work table, one part exhausted to room at front by preventing room air move into the working zone. The rest of the internal air is recirculated from the back holes of the cabinet by also increasing HEPA filter life. The automatic air compensation through microprocessor control system keeps steady airflow rate at set point.
Main Body and Design Features
- Main body from antibacterial electrostatic paint coated on steel
- <7° angle back sloped front panel for work comfort and increased working chamber vision
- 26° Openable front panel for easy working chamber cleaning
- Easy reachable electronic control & electrical part located inside at front panel isolated from work chamber
- UV resistant glass
Microprocessor Control Unit
- Password protected user interface
- Device on/off button
- Standby/Normal modes operation indicator
- Motorized front window level adjustment and one-button automatic front window level adjustment
- UV and illumination lamp On/Off buttons
- Automatic switch to Standby mode and UV lamp operation when the windshield is closed
- User interface password change
- Password protected technical service maintenance/calibration
- Date and time information
- Downflow air velocity rate
- Fan working capacity
- Fan working diagram
- UV lamp timer setting,
- Cabinet, UV and illumination running times
Audio-Visual Warning System
- Audible visual alarm button and temporary mute
- Improper front window position warning
- Improper air velocity warning
- Filter, pre-filter and UV lamp replacement warning
- Technical service maintenance warning
Quality And Certifications
- CE
- ISO9001-2015 Quality Management Certificate
- ISO14644 Cleanroom Class Compatibility
- EN61010 Electric and Electronic Safety Compatibility
- Accredited Testing Institution Validation Guarantee
Optionals
- MOP.ADI Adjustable Illumunation
- MOP. FWS Front Window Motion Safety System
- MOP.HTS Humidity/Temperature Sensor
- MOP.RES Remote Access
- MOP.CFL.EU4 Active Carbon Impregnated Pre-filter
- MOP.FLT.ULP ULPA Filter
- MOP.MIE Microscope Entegration
- MOP.PMS Particle Measure System
- MOP.BWT Precision Balance with Vibration Damping Weighing Table
- MOP.WCS Working Cabinet Suspension Apparatus (IV Bar)
- MOP.MDS Manuel Decontamination System
875x680x650
1020x840x1372
1020x840x785
860 mm
0.45 m/s ± %20
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux
1180x680x650
1325x840x1372
1325x840x785
860 mm
0.45 m/s ± %20
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux
1485x680x650
1630x840x1372
1630x840x785
860 mm
0.45 m/s ± %20
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux
1790x680x650
1935x840x1372
1935x840x785
860 mm
0.45 m/s ± %20
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 60 dB
≥750 Lux

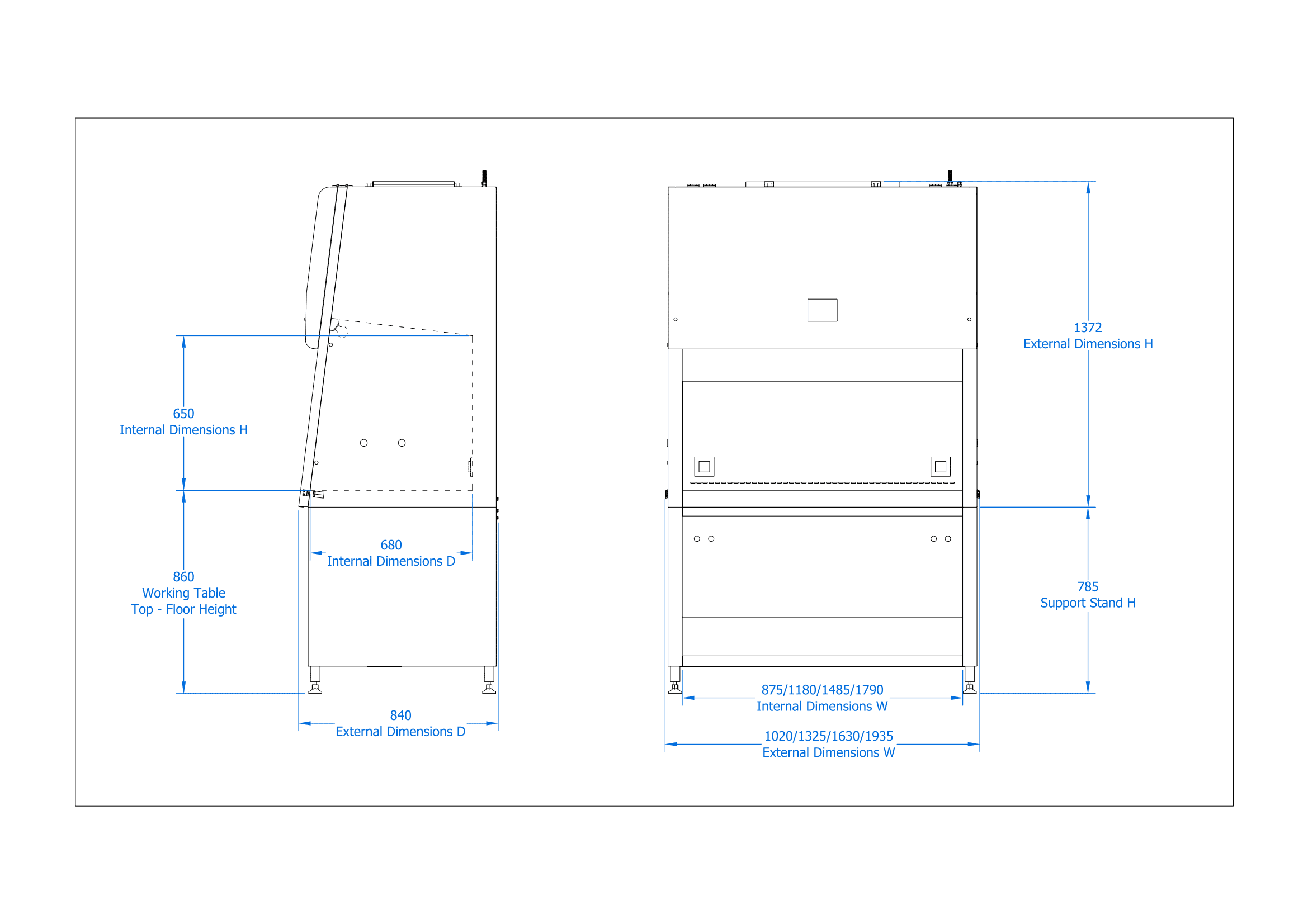

LFV-E Series Dimensions
