Class IIB BSC
Metisafe® Class II type B2 Biological Safety Cabinets works under principles with full exhaust of Pre/HEPA filtered fresh air to outer athmosphere without recirculation. Exhausting through HEPA f ilter protects also environment. Those Airflow principles of Class II type B2 cabinets provide safe work with biological risk level 2+/3 agents and also with cytotoxic gas & materials. The room air is pulled in through the perforations located at front of the work plate and directed to blower plenum (inflow air). This airflow direction prevents reaching dirty air to materials over the working plate. Pre/HEPA filtered air supplied through top of the cabinet provides the work area protecting the work zone under ISO-5 class laminar airflow. Total air in the working cabinet fully exhausted without recirculation through exhaust blower fan to athmosphere by keeping working area under negative air pressure. In addition to primary air barrier accomplished by negative pressure within the working zone double wall negative plenum design of the Metisafe cabinet prevents particle escape to surroundings and zero leakage is ensured.
Main Body and Design Features
- Main body from antibacterial electrostatic paint coated on steel
- <7° angle back sloped front panel for work comfort and increased work chamber vision

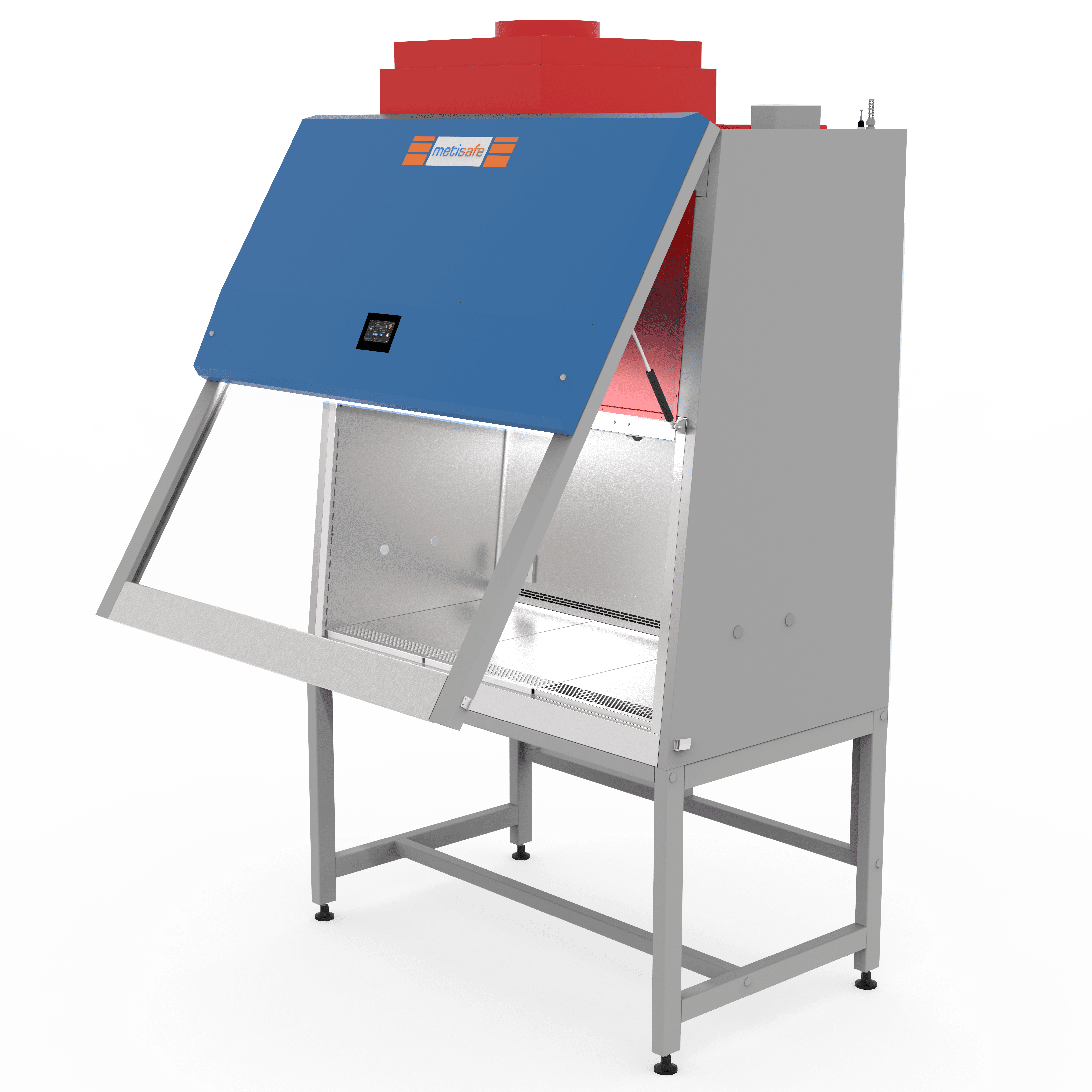

- 26° openable front panel for easy work chamber cleaning
- Easy reachable electronic control & electrical part located inside at front panel isolated from work chamber
- UV resistant glass
Microprocessor Control Unit
- Color touch screen
- Password protected user interface
- Device on/off button
- Standby/Normal modes operation indicator
- Motorized front window level adjustment and one-button automatic front window level adjustment
- UV and illumination lamp On/Off buttons
- Automatic switch to Standby mode and UV lamp operation when the windshield is closed
- The front window system that opens when the proper air velocity conditions at the opening of the cabinet
- Unable to turn the device off without closing the front window
- User interface password change
- Password protected technical service maintenance/calibration
- Date and time information
- Downflow/Inflow Air velocity rate
- Fan working capacity
- UV lamp timer setting
- Cabinet, UV and illumination running times
Audio-Visual Warning System
- Audible visual alarm button and
- temporary mute
- Improper front window position warning
- Improper air velocity warning
- Filter, Pre-filter and UV lamp replacement warning
- Technical service maintenance warning
Quality And Certifications
- CE
- Biological Safety Cabinets EN12469
- ISO9001-2015 Quality Management Certificate
- ISO14644 Cleanroom Class Compatibility
- EN61010 Electric and Electronic Safety Compatibility
- Accredited Testing Institution Validation Guarantee
Optionals
- MOP.ADI Lux Adjustable Illumination
- MOP. FWS Front Window Motion Safety System
- MOP.HTS Humidity/Temperature Sensor
- MOP.RES Remote Access
- MOP.CFL Carbon Filter
- MOP.CFL.EU4 Active Carbon Impregnated Pre-filter
- MOP.FLT.ULP ULPA Filter
- MOP.PMS Particle Measure System
- MOP.BWT Precision Balance with Vibration Damping Weighing Table
- MOP.WCS Working Cabinet Suspension Apparatus
- MOP.MDS Manual Decontamination System
- MOP.SDS Semi-Automatic Decontamination
875 x 520 x 695
1020 x 745 x 1610
996 x 702 x 745
840 mm
≥ 0.40 m/s
0.25 - 0.50 m/s
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 65 dB
≥750 Lux
1250 x 610 x 614
1395 x 860 x 1700
1371 x 810 x 745
840 mm
≥ 0.40 m/s
0.25 - 0.50 m/s
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 65 dB
≥750 Lux
1480 x 520 x 695
1625 x 745 x 1610
1601 x 702 x 745
840 mm
≥ 0.40 m/s
0.25 - 0.50 m/s
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 65 dB
≥750 Lux
1785 x 520 x 695
1930 x 745 x 1610
1906 x 702 x 745
840 mm
≥ 0.40 m/s
0.25 - 0.50 m/s
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
EU4
304 Stainless Steel
316 Stainless Steel
≤ 65 dB
≥750 Lux

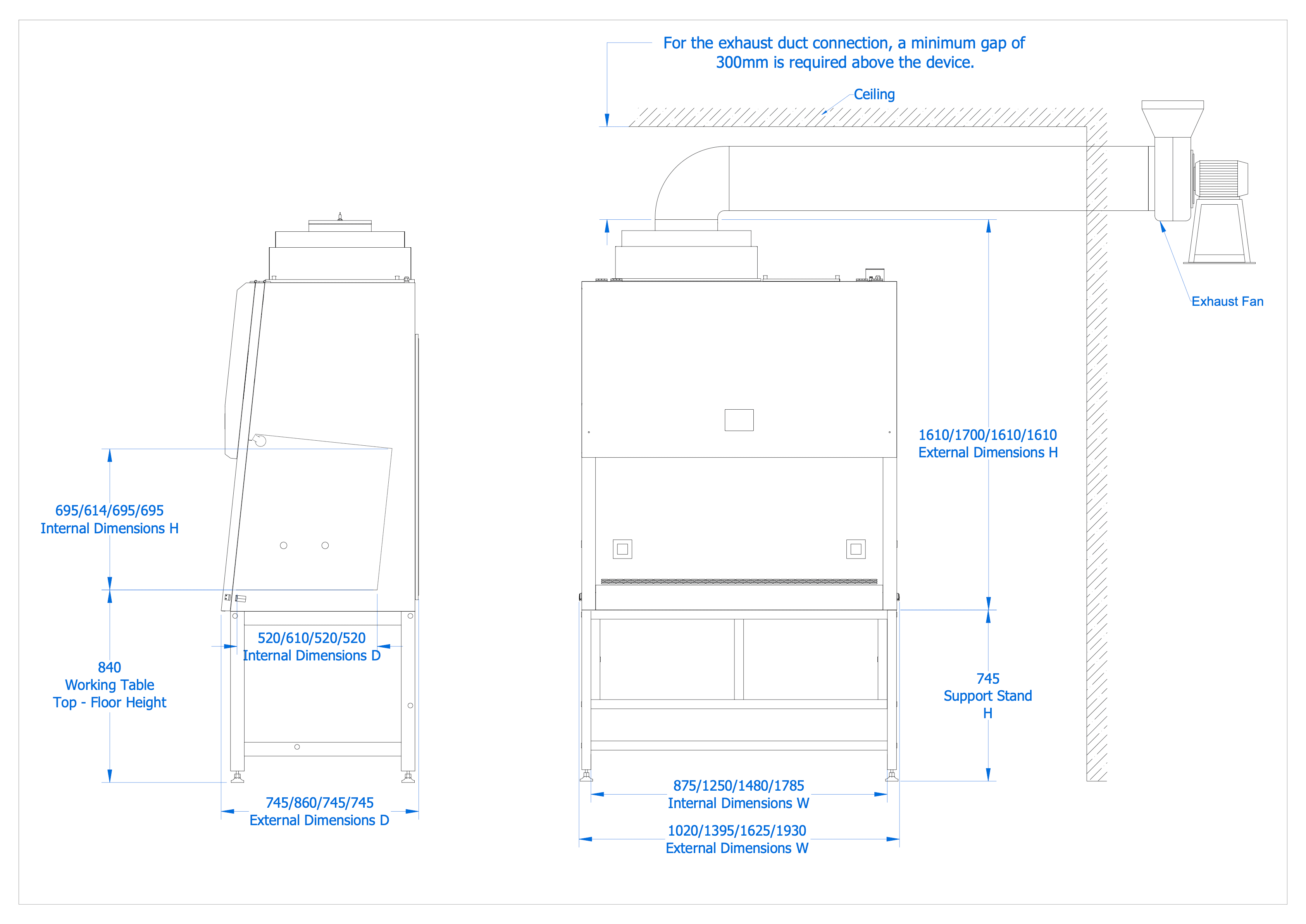

MSC-IIB Dimensions
