Class I BSC
Unidentified materials or contents of the danger level are provided in Class I BGK to protect the personnel and the environment.
Metisafe Class I BSC works with HEPA filtration principle. The room air is taken into the cabinet at 0.50 m/sec (± 10%) from the sash window opening and passed through HEPA filtration, and clean particle free air is supplied to the indoor environment.
The Class I BSC is designed so that the cabinet workarea will be dead space free and will not disturb the air flow pattern.
Main Body and Design Features
- Sealed main body covered with Antibacterial epoxy powder paint coated steel
- <7° angle back sloped front panel for work comfort and increased working chamber vision
- Openable front panel for easy working chamber cleaning
- Easy reachable electronic control & electrical part located inside at front panel isolated from work chamber
- UV resistant glass
Microprocessor Control Unit
- Password protected user lock screen
- On/off button
- Normal/standby working modes
- Motorized front window level adjustment and one-button automatic front window level adjustment,
- UV and illumination on/off buttons
- UV timer
- Operate UV lamps and switch to automatic standby mode when the front window is fully closed
- Password change
- Password protected technical service maintenance/calibration screen
- Date and time information
- Running time screen
Audio-Visual Warning System
- Improper front window position alarm
- Improper air velocity alarm
- Filter and UV lamp change time alarm
- Technical service alarm
- Fan failure alarm
- Audible alarm temporary mute button
Quality And Certifications
- CE
- ISO9001-2015 Quality Management Certificate
- ISO14644 Cleanroom Class Compatibility
- EN61010 Electric and Electronic Safety Compatibility
- Accredited Testing Institution Validation Guarantee
Optionals
- MOP.ADI Adjustable Illumunation
- MOP. FWS Front Window Motion Safety System
- MOP.HTS Humidity/Temperature Sensor
- MOP.PPR Process Parameter Recording System
- MOP.RES Remote Access
- MOP.CFL Carbon Filter
- MOP.CFL.EU4 Active Carbon Impregnated Pre-filter
- MOP.FLT.ULP ULPA Filter
- MOP.MIE Microscope Entegration
- MOP.PMS Particle Measure System
- MOP.BWT Precision Balance with Vibration Damping Weighing Table
- MOP.WCS Working Cabinet Suspension Apparatus (IV Bar)
- MOP.MDS Manuel Decontamination System
875x520x746
995x735x1440
995x735x745
840 mm
0.50 ± %5
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
304 Stainless Steel
316 Stainless Steel
≤ 65 dB(A)
≥750 Lux
1250x610x675
1370x843x1445
1370x843x745
840 mm
0.50 ± %5
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
304 Stainless Steel
316 Stainless Steel
≤ 65 dB(A)
≥750 Lux
1480x520x746
1600x735x1478
1600x735x745
840 mm
0.50 ± %5
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
304 Stainless Steel
316 Stainless Steel
≤ 65 dB(A)
≥750 Lux
1785x520x746
1905x735x1467
1905x735x745
840 mm
0.50 ± %5
H14 HEPA, 0,3 µm paticle %99.995 < filtration efficiency
304 Stainless Steel
316 Stainless Steel
≤ 65 dB(A)
≥750 Lux

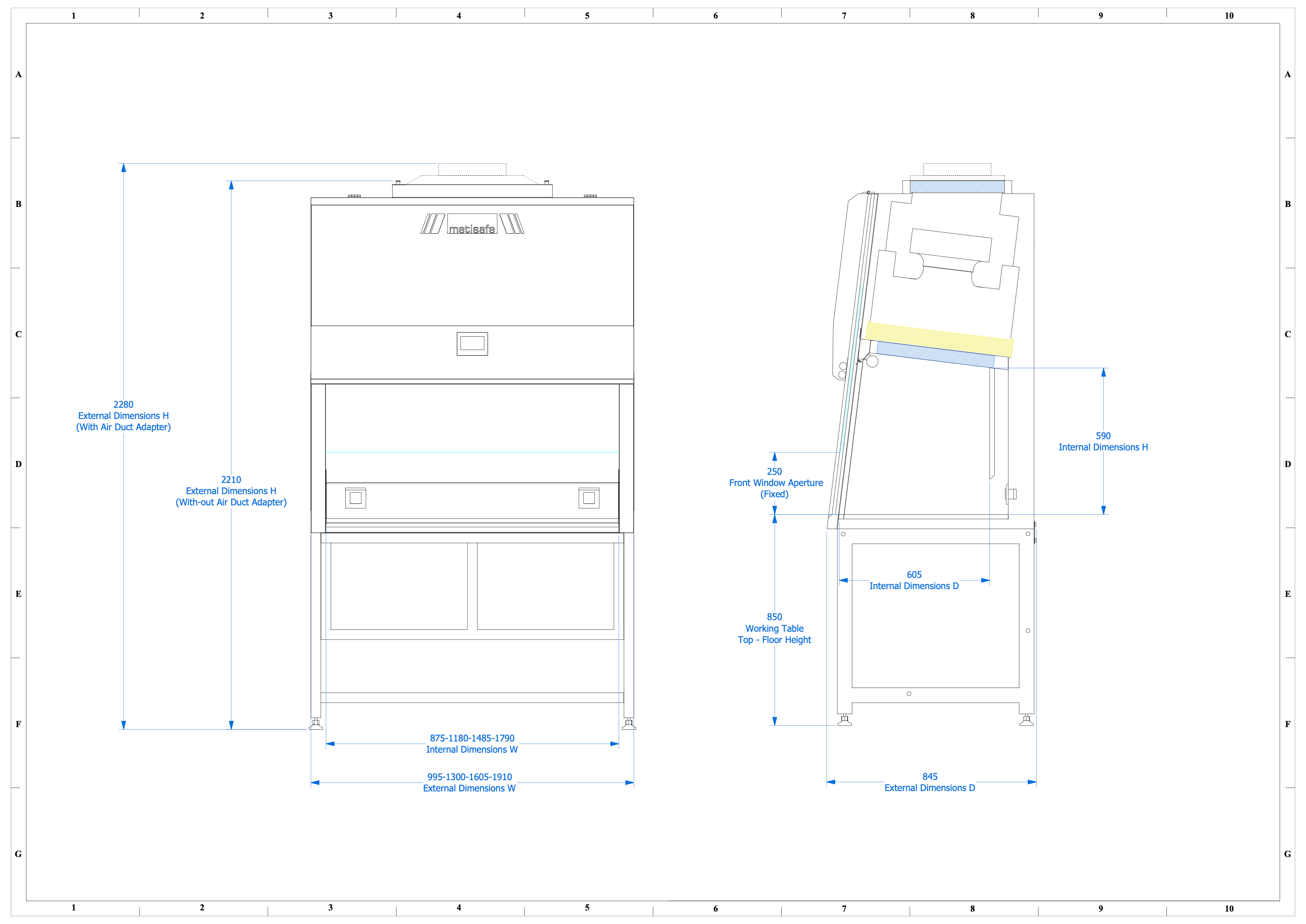

MSC-I Dimensions
